WIZ105SR-EVB
€58.31
€49.00
Delivery Time: 7 days for quantities in stock. Other quantities on request.
obsolete: Evaluation Board for the WIZ105SR Serial-to-Ethernet Module using the W5100 chip
This product has reached its end of life - parts available until stock is depleted. Please contact us for further details.
Product Description

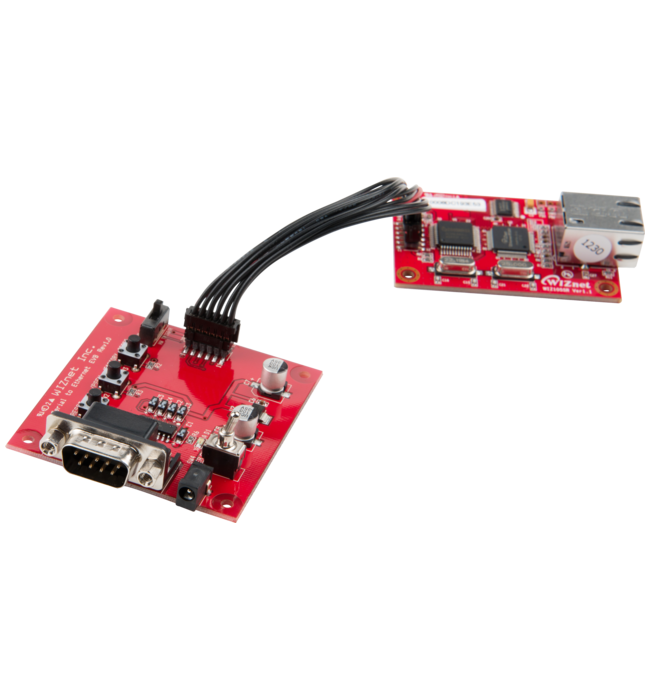

WIZ105SR-EVB is a evaluation board for WIZ105SR.
WIZ105SR is the serial to Ethernet module using W5100 & 8051 MCU. WIZ105SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment.
Features
- Power Adaptor (5V, 2A), UTP LAN Cable (2M), Serial Cable, WIZ105SR-CBL (connection cable between module & base board)
- Module Interface : 2×6 12PIN 2mm DIP Header (Male)
- Serial Connector : D-SUB, 9PIN, Right Angle, Male
- RS-232 Transceiver : SP3232ECN
- Power : DC Jack mounted (External : 4.5Ø, Internal :1.3Ø)
Related Links
WIZnet Documentation
WIZ105SR-EVB product page on wiznet.io
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 50 mm x 40 mm |
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| Auto Negotiation | Yes |
| Network sockets count | 4 |
| internal DPRAM buffer memory | 32 kB |
| Protocol | IPv4 |
| MCU core | 8051 |
| ROM | 62 kB + 2 kB |
| RAM | 16 kB |
| voltage regulator (LDO) | Yes |
