WIZ100SR-EVB
€58.31
€49.00
Delivery Time
5 - 7 d

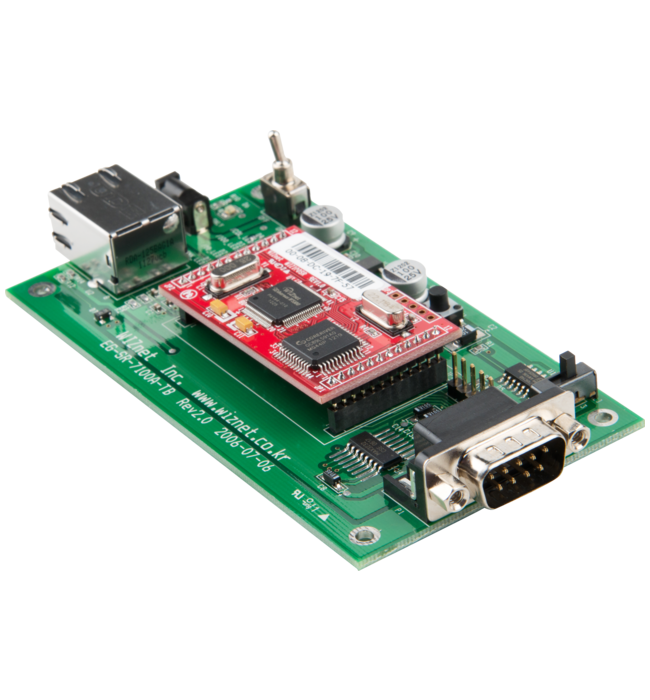

Evaluation Board for the WIZ100SR Serial-to-Ethernet Module with W5100 chip
Product Description
WIZ100SR-EVB is a evaluation board for WIZ100SR.
WIZ100SR is the serial to Ethernet module using W5100 & 8051 MCU. WIZ100SR is the protocol converter that transmits the data sent by a serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to a serial equipment.
Features
- Serial to Ethernet Module based on W5100 & 8051
- Pin-header type module
- Serial signals : TXD, RXD, RTS, CTS, GND
- Support the configuration method of AT command & Configuration tool program
- 10/100Mbps Ethernet & Max.230kbps serial speed
- Support WIZ VSP (Virtual Serial Port) program
Related Links
| Manufacturer | WIZnet |
|---|---|
| Dimension | 120 mm x 80 mm |
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| Auto Negotiation | Yes |
| Network sockets count | 4 |
| internal DPRAM buffer memory | 32 kB |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | 8051 |
| ROM | 62 kB + 2 kB |
| RAM | 16 kB |
| voltage regulator (LDO) | Yes |
