WIZ1000
€89.25
€75.00
Delivery Time
5 - 7 d

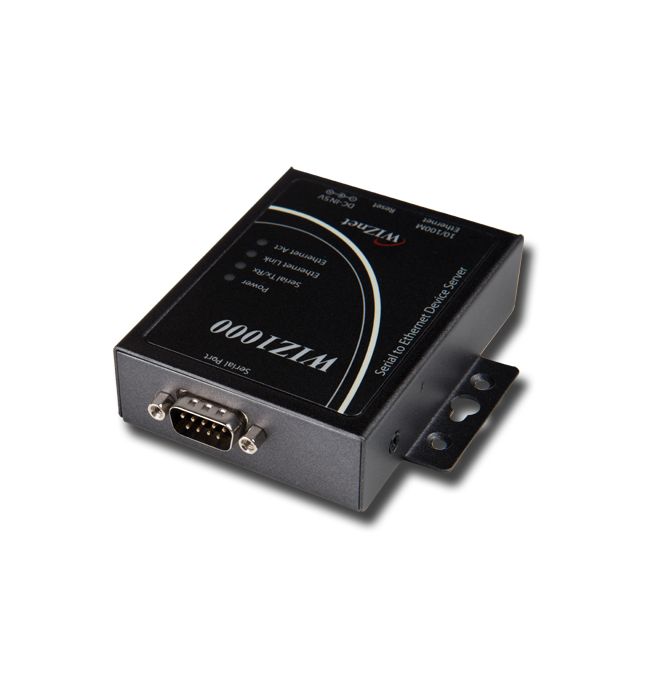

Ready to use external device server with Serial To Ethernet functionality - RS232 to Ethernet based on the W5100 chip.
Product Description
External device server with Serial To Ethernet functionality.
The WIZ1000 comes as the one box solution to connect your exisiting device with a RS232 serial connector to your Ethernet network. You can easily manage your serial device over a simple network connection without having to modify your existing device.
The WIZ1000 contains all the items that are needed to make a quick start: The module itself, a RS232 serial connection cable, a RJ45 CAT 5 network cable and a +9V power supply. With the integrated Windows configuration tool the necessary configuration for the tool is made with some simple clicks. The user only needs to do some basic configuration and the module is ready to run.
Feature
- External device server to perform “Serial/Ethernet Convert Function”
- Support easy implementation of Ethernet to the existing serial device
- Guarantee high system stability and reliability by using W5100 hardware chip
- Support PPPoE Connection
- Supports firmware customization
- Telnet Com Port Option (RFC2217) compliant
- Supports serial configuration by using AT command
- Software utilities for easy configuration - User friendly configuration tool program
- CE, FCC, KCC certified
Related Links
| Manufacturer | WIZnet |
|---|---|
| Ethernet I/F | RJ45 |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| Core speed | 96 MHz |
| voltage regulator (LDO) | Yes |
| Ethernet Speed | 10/100 |
