WIZ-IP55
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
Compact Ethernet network module in MAG-JACK form factor based on the W5500.
Product Description
Compact Ethernet network module in MAG-JACK form factor based on the W5500

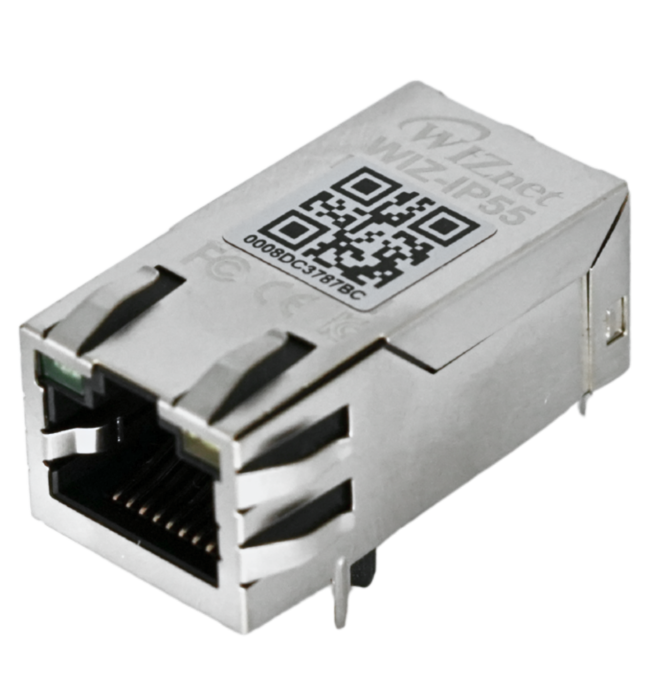

The WIZ-IP55 is a plug-and-play Ethernet network offload module that combines the W5500 hardwired TCP/IP chip with built-in PHY and an RJ45 connector with integrated network transformer. Housed in a compact MAG-JACK form factor (32.5 × 16.5 × 17.3 mm), the module exposes the SPI interface and control signals on a 2.54 mm pin header, allowing direct on-board integration with any host MCU. The W5500 implements a full hardware TCP/IP stack supporting TCP, UDP, ICMP, IPv4, ARP, IGMPv1/v2 and PPPoE, with 8 independent hardware sockets and a 32 kB send/receive buffer. The high-speed SPI interface (up to 80 MHz, modes 0/3) enables fast Ethernet integration with minimal host-MCU overhead. With an industrial operating temperature range of -40 °C to +85 °C, the WIZ-IP55 is suited for embedded networking, IoT gateways and industrial connectivity applications.
Feature
- Compact Ethernet module in MAG-JACK form factor
- Based on WIZnet W5500 hardwired TCP/IP controller
- Integrated network transformer and RJ45 connector
- Supports 10/100 Mbps Ethernet with auto negotiation
- Half-duplex / full-duplex operation
- 8 independent hardware sockets, 32 kB total send/receive buffer
- Hardware TCP/IP protocol support: TCP, UDP, ICMP, IPv4, ARP, IGMPv1/v2, PPPoE
- High-speed SPI interface up to 80 MHz (modes 0/3)
- Wake-on-LAN (UDP-based) and Power Down mode
- 3.3 V power supply, I/O pins 5 V signal tolerant
- Compact dimensions: 32.5 × 16.5 × 17.3 mm, pin pitch 2.54 mm
- Industrial operating temperature -40 °C to +85 °C
- Compatible with WIZnet IO module carrier board
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 32.5 × 16.5 × 17.3 mm |
| Ethernet I/F | PHY |
| Operating Temperature | -40 °C to +85 °C |
| Operating Voltage | 3.3 V |
| Functions | 3-in-1, TCP/IP + MAC + PHY |
| Auto Negotiation | Yes |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Package | pin module |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU I/F | SPI |
| PoE possible | No |
| Related Chip/Module | W5500 |
| Ethernet connector | RJ45 |
| pin pitch | 2.54 mm |
| Ethernet Speed | 10/100 |
