W7500S2E-D1
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks

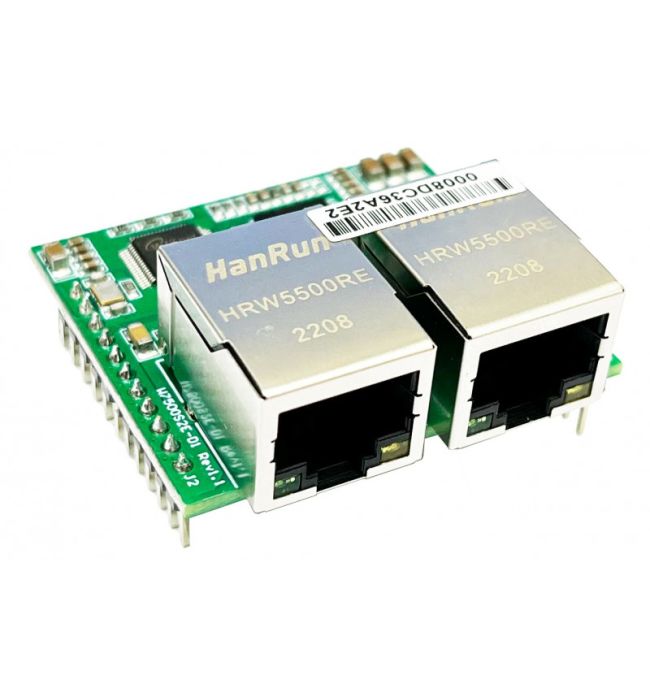

Compact serial-to-Ethernet module with two RJ-45 ports through an integrated Ethernet switch.
Product Description
Compact serial-to-Ethernet module with two RJ-45 ports through an integrated Ethernet switch

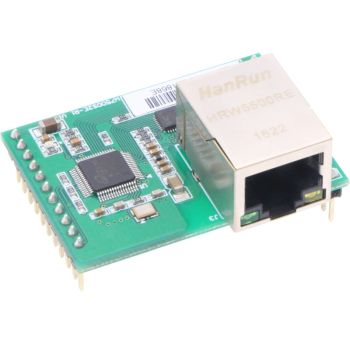

The W7500S2E-D1 is a compact serial-to-Ethernet module of WIZnet's W7500S2E family, based on the W7500 hardwired TCP/IP MCU (ARM Cortex-M0, 48 MHz) with an external IC Plus IP175LF 3-port Ethernet switch with integrated PHYs. It distinguishes itself from the other family members (R1, S1, Z1, C1) by featuring two RJ-45 ports connected through this internal switch. Both ports share a single MAC address and TCP/IP stack, which allows two devices to be connected to the same logical network endpoint or several W7500S2E-D1 modules to be daisy-chained over a single network cable without an external switch. The module supports TCP server, TCP client and UDP operating modes, with serial baud rates up to 460,800 bps and an external RS-485 transceiver enable pin. Configuration is available via the WIZS2E ConfigTool (Windows), an integrated web interface or AT commands.
Feature
- Serial-to-Ethernet module based on the W7500 (ARM Cortex-M0, 48 MHz) with hardwired TCP/IP
- Two RJ-45 ports through an integrated 3-port Ethernet switch (IC Plus IP175LF) with PHYs
- Both ports share a single MAC address and TCP/IP stack — supports daisy-chain wiring without an external switch
- 10/100 Mbps Auto-Negotiation Ethernet
- TCP server, TCP client and UDP operating modes
- Serial baud rates from 300 bps to 460,800 bps, 7/8 data bits, 1/2 stop bits, parity NONE/EVEN/ODD, optional CTS/RTS hardware flow control
- RS-485 enable pin for an external RS-485 transceiver
- Three configuration methods: WIZS2E ConfigTool (Windows), integrated web interface, AT commands
- DHCP client, DNS client, NetBIOS support
- Local firmware upgrade via PC software
- TCP keep-alive, password authentication, configurable serial data packing
- Stand-alone PCB with 2.54 mm pin headers (12 + 11 pins)
- 3.3 V power supply
- Operating temperature 0 °C to +70 °C
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 44.45 × 42.76 × 23.00 mm |
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| Operating Voltage | 3.3 V |
| Functions | S2E (Serial-to-Ethernet) |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Package | stand alone PCB |
| Pin count module | 12 & 11 |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| Core speed | 48 MHz |
| MCU I/F | UART |
| Related Chip/Module | W7500 |
| pin pitch | 2.54 mm |
| voltage regulator (LDO) | Yes |
| Ethernet connector | RJ45 |
| Connector Type | header pins |
| Ethernet Speed | 10/100 |
