W5500 Ethernet Shield
€26.18
€22.00
Delivery Time: 5 - 7 d
Arduino and ARM MBED compatible shield using WIZnet W5500
Product Description

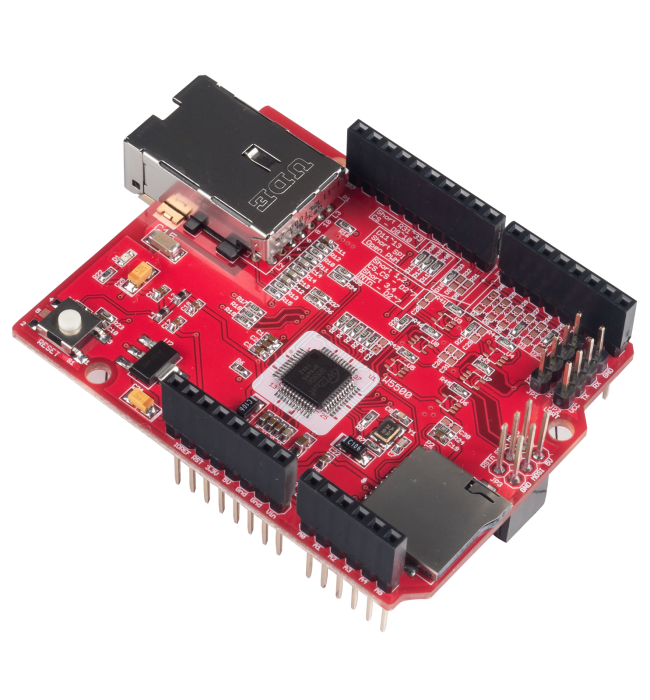

The W5500 Ethernet shield has been designed using the WIZnet W5500 chip. Both 3.3V & 5V operating voltages are supported directly. This Ethernet Shield is compatible with Arduino and ARM mbed platforms.
Features
- Suppport 3.3V / 5V
- High Speed Ethernet controller W5500 chip
- SPI interface
- Internal 32 KByte TX/RX buffer
- 10/100 MBit Ethernet PHY embedded
- supports Auto Negotiation (full/half dupley, 10/100-based)
- hardwired TCP/IP protocols: TCP, UDP, ICMP, IGMP, ARP. IPv4, PPPoE
- configurable GPIO pins
- supports I2C, UART
- SD-card slot for storage
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 69 mm x 54 mm |
| Ethernet I/F | PHY |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Protocol | IPv4 |
| PoE possible | No |
