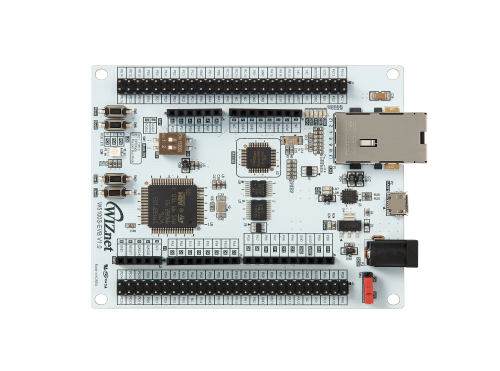

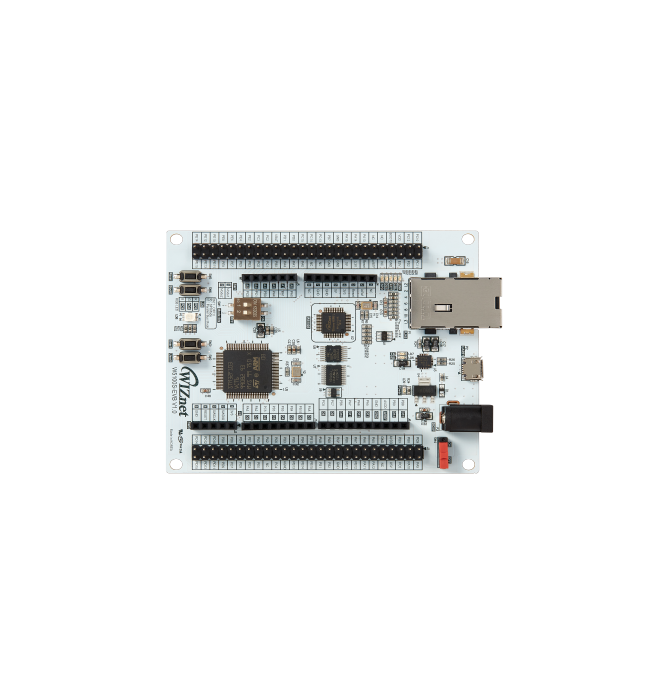

W5100S-EVB
€44.03
€37.00
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
obsolete: W5100S-EVB
This product has reached its end of life - parts available until stock is depleted. Please contact us for further details.
W5100S-EVB
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 80 mm x 90 mm x 15 mm |
| Ethernet I/F | PHY |
| Operating Temperature | -40 °C to +85 °C |
| Operating Voltage | 3.3 V / 5 V |
| Functions | 4-in-1, MCU + TCP/IP + MAC + PHY |
| Auto Negotiation | Yes |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 32 kB |
| Package | stand alone PCB |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4, IPv6 |
| MCU core | ARM Cortex M3 |
| ROM | 256 kB |
| RAM | 64 kB |
| I/O ports | stand alone PCB |
| Connector Type | mini USB |
| Ethernet connector | RJ45 |
| pin pitch | 2.54 mm |
| voltage regulator (LDO) | Yes |
| Ethernet Speed | 10/100 |
