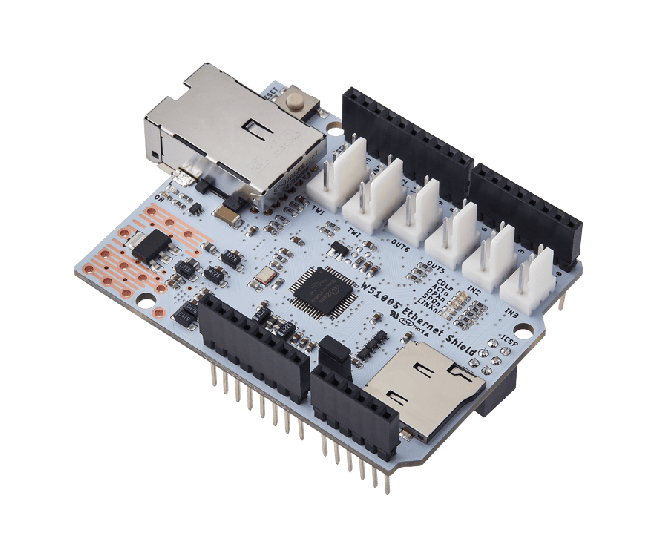

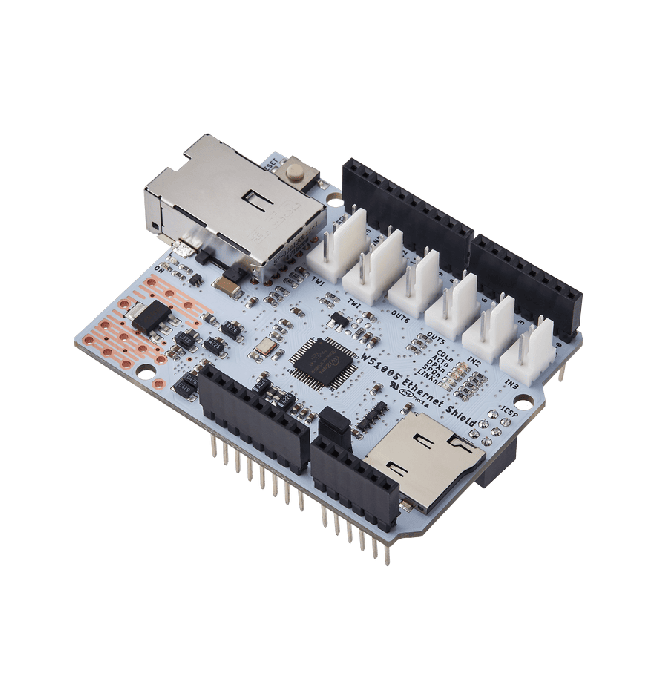

W5100S Ethernet Shield
€29.75
€25.00
Delivery Time
5 - 7 d
ARM mbed compatible operation
Arduino Pin-compatible
Ethernet (W5100S Hardwired TCP/IP chip)
Product Description
W5100S Ethernet shield is designed using the WIZnet W5100S chip. Please click the link for the further information about W5100S. It supports both 3.3V & 5V. This Ethernet Shield is compatible with Arduino and ARM mbed Platform. The W5100S Ethernet shield is compatible with the Arduino Ethernet Shield (W5100).
ARM mbed compatible operation
Arduino Pin-compatible
Ethernet (W5100S Hardwired TCP/IP chip)
Features
- Operation Voltage DC5V or DC3.3VSignals (SPI) Voltage 3.3V
- Included W5100S of WIZnet
- W5100S is software compatible with the W5100.Compatible with the official Arduino Ethernet shield (Default)
- Compatible with the official Arduino Ethernet Shield 2 at user choice (Optional)
- SPI Interface
- 10/100 Ethernet PHY embedded
- Support Auto NegotiationFull / Half Duplex
- 10/ 100 Based
- Hardware TCP/IP ProtocolsTCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Support Micro SD Card slot for storage
