W3150A+EVB
€83.30
€70.00
Delivery Time
5 - 7 d

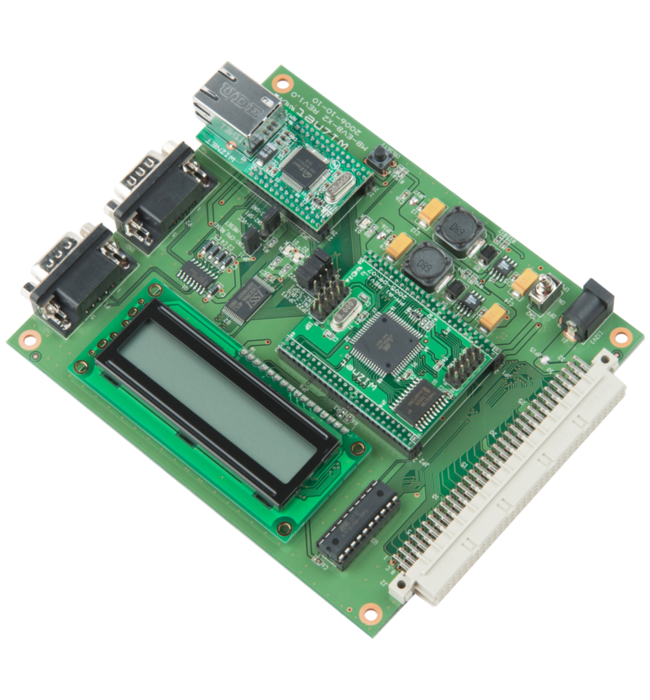

Evaluation Board for the W3150A+ chip using NM7010B+ module
This product has reached its end of life. Please contact us in case you have any demand for it.
Evaluation Board for our 2-in-1 (with MII I/F) W3150A+ chip using NM7010B+ module and Atmel ATMega 128MCU
| Dimension | ~ 150 mm x 120 mm |
|---|---|
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| Auto Negotiation | Yes |
| Network sockets count | 4 |
| internal DPRAM buffer memory | 32 kB |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | Atmel ATMega 128 |
| ROM | 128 kB + 4 kB |
| RAM | 32 kB |
| voltage regulator (LDO) | Yes |
