W232N
€45.22
€38.00
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
Industrial Ethernet to RS232 data conversion device.
Product Description

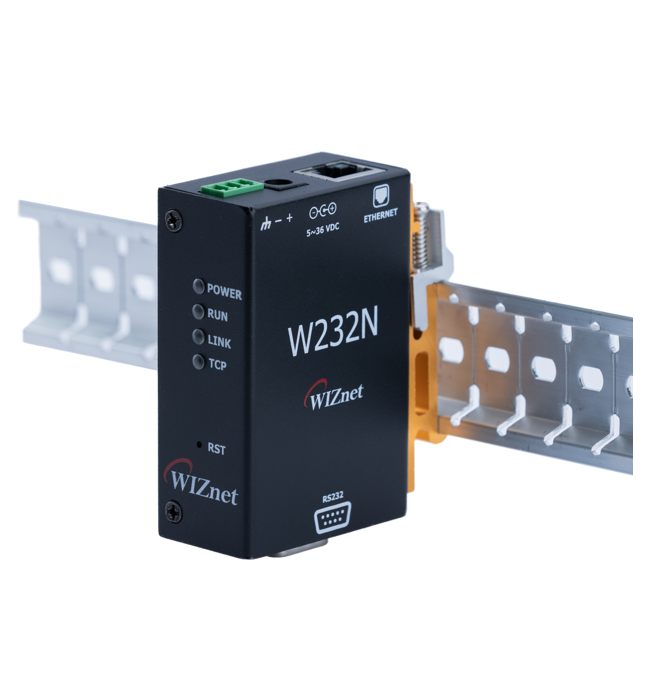

Industrial, rail-mountable Ethernet to RS232 data conversion unit
The W232N is a high-performance industrial Ethernet to RS232 data conversion device that enables seamless integration of Ethernet connectivity into legacy serial communication systems. It supports Modbus TCP to Modbus RTU/ASCII protocol conversion, allowing for easy and efficient data transmission across various applications. With robust industrial features such as wide input voltage (5V to 36V), high-speed communication (10/100Mbps Ethernet, up to 230kbps serial), and compliance with KC and FCC certifications, the W232N ensures reliable operation in demanding environments. The device is equipped with multiple configuration options, including web-based and software tools, making setup and management simple and efficient. Featuring industrial-standard operating temperatures and DIN rail mounting support, the W232N is the ideal solution for industrial automation, remote monitoring, and other applications requiring stable and secure data communication.
Feature
- RS232 to Ethernet protocol conversion device
- Supports Modbus TCP to Modbus RTU/ASCII protocol conversion
- Enables easy implementation of Ethernet into existing serial devices
- KC,FCC certified to ensure high system stability and reliability
- Supports 10/100Mbps Ethernet and up to 230kbps serial speeds
- Supports RS232C standard with D-SUB9 port
- Supports password setting for device discovery
- Supports AT command via D-SUB9 port
- Configurable with Config-tool
- Supports Web Config
- Wide input voltage 5 - 36V
- Industrial-standard operating temperature -25 °C to - +80°C
- Supports DIN rail (DIN 46277) mounting
- Protected against ESD
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Manufacturer Address / Hersteller-Adresse | WIZnet Co., Ltd. 5th Floor Humax Village 216 Hwangsaeul-ro Bundang-gu, Seongnam-si Gyeonggi-do 13595 |
| Hinweis zur Verwendung / Usage note | Dieses Produkt ist für den industriellen Einsatz bestimmt und richtet sich ausschließlich an technisch versierte Anwender. Zur Inbetriebnahme sind Fachkenntnisse in den Bereichen Netzwerktechnik, serielle Kommunikation (RS232) sowie Systemintegration erforderlich. Das Gerät ist nicht ohne zusätzliche Komponenten und Konfiguration einsatzfähig. Bitte beachten Sie die technische Dokumentation des Herstellers unter https://docs.wiznet.io/Product/S2E-Module/Industrial/W232N-datasheet-en |
| Ethernet I/F | RJ45 |
| Operating Temperature | -25 °C to +80 °C |
| Operating Voltage | 5 V - 36 V |
| Functions | S2E (Serial-to-Ethernet) |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| I/O ports | 23 GPIO |
| RAM | 264 kB |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortext M0+ |
| Core speed | 2x 133 MHz |

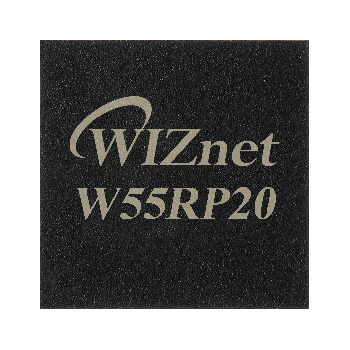

| Related Chip/Module | W55RP20 |
| voltage regulator (LDO) | Yes |
| Ethernet connector | RJ45 |
| Connector Type | DB9 |
| Ethernet Speed | 10/100 |
| UART (max speed) | 230 k |
