RB1-ZZ-0526
Delivery Time: 7 days for quantities in stock. Backordered pieces: 16 weeks
Lead-free shielded RJ45 MagJack, 10/100Base-T with integrated magnetics and 2 LEDs. RoHS without exemption, Tab Down, through-hole. Drop-in replacement for RB1-125BAG1A.
Product Description

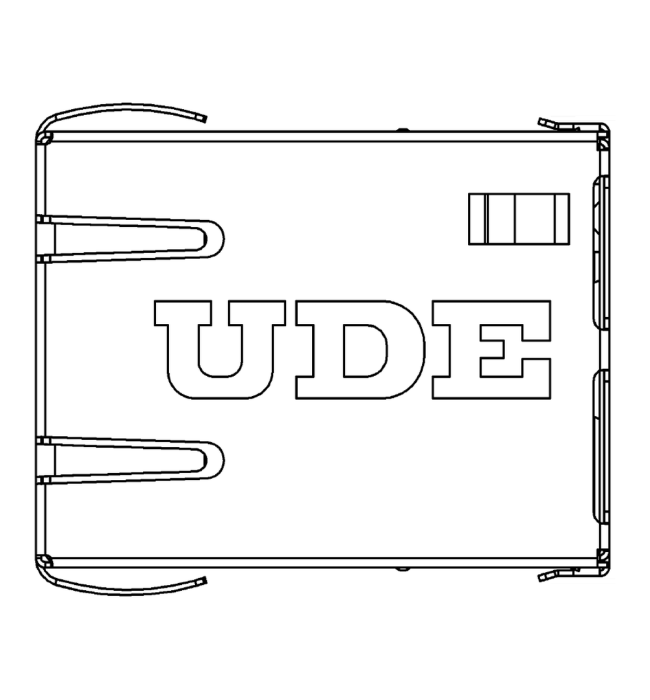

Lead-free shielded RJ45 MagJack with integrated 10/100Base-T magnetics and two status LEDs.
The RB1-ZZ-0526 is a lead-free RJ45 MagJack from UDE and the lead-free replacement for the RB1-125BAG1A. It is a single-port RJ45 jack with built-in 1:1 magnetics (transformer), combining connector and Ethernet isolation in one through-hole component. All materials are RoHS compliant without the use of an exemption.
UDE confirms that the RB1-ZZ-0526 can be mounted directly on existing PCBs designed for the RB1-125BAG1A, without any changes to the PCB layout.
Features
- 100% RoHS material, no RoHS exemption (lead-free resistor)
- Drop-in replacement for RB1-125BAG1A, no PCB layout changes required
- 10/100Base-T with integrated 1:1 transformer (magnetics), 350 µH min. inductance
- 1500 Vac isolation (HiPot)
- Tab Down orientation, through-hole (THT) mounting
- Shielded stainless-steel housing with 6 EMI fingers, PA6T plastic parts (UL94V-0)
- Status LEDs: left green (570 nm), right yellow (588 nm)
- Gold Flash contact plating, phosphor-bronze terminals
- Operating temperature 0 … +70 °C, 750 mating cycles
- Dimensions 15.75 × 21.78 × 13.35 mm (W × L × H)
| Manufacturer / Hersteller | UDE |
|---|---|
| Functions | passive |
| Operating Temperature | 0 °C to +70 °C |
| Durability (cycles) | 750 cycles |
| PoE possible | No |
| Plating | Gold Flash |
| EMI Fingers | 6 |
| Tab | Tab Down |
| Transformer | Yes |
| Center Tab | connected CTs |
| Connector Type | Through Hole |
