RB1-125BAG1A
€2.62
€2.20
Delivery Time: 7 days for quantities in stock. Backordered pieces: 20 weeks

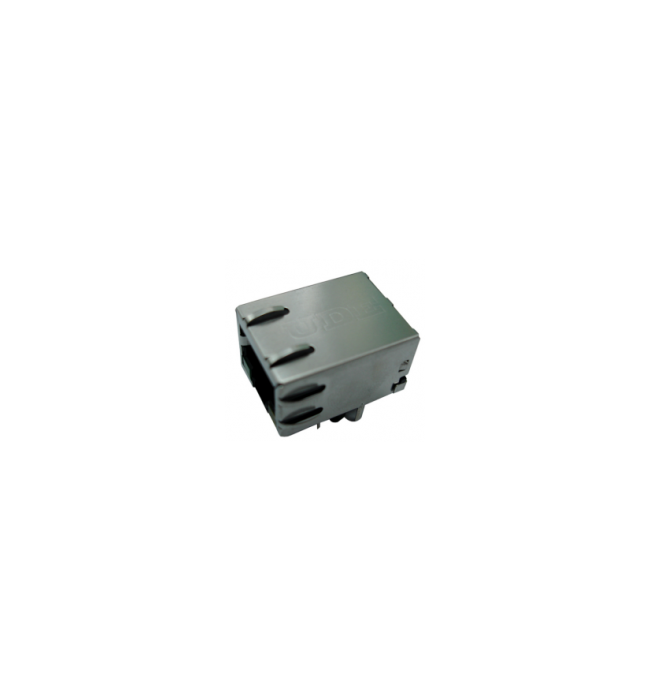

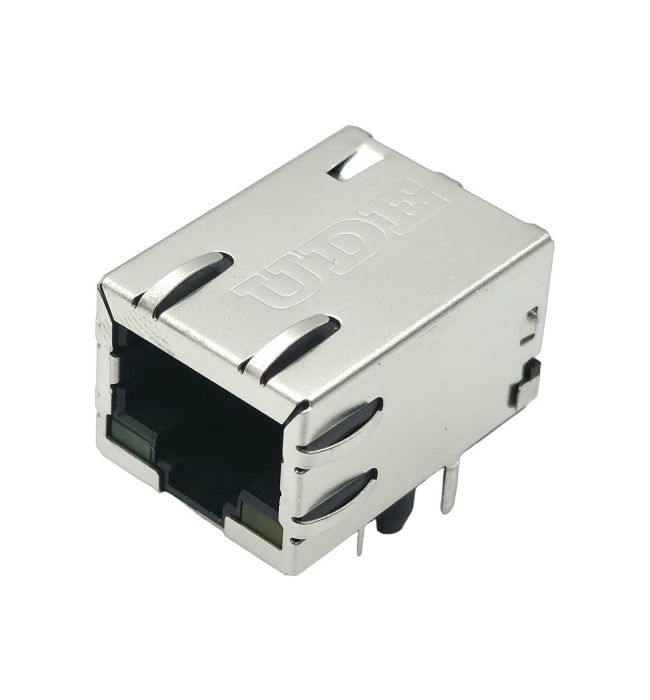

Shielded RJ45 MagJack, 10/100Base-T with integrated magnetics and 2 LEDs. Tab Down, through-hole.
Product Description
Shielded RJ45 MagJack with integrated 10/100Base-T magnetics and two status LEDs.
The RB1-125BAG1A is a single-port RJ45 jack with built-in 1:1 magnetics (transformer), combining connector and Ethernet isolation in one through-hole component. Its Tab Down orientation and shielded metal housing make it a proven standard part for compact 10/100 Ethernet designs.
Features
- 10/100Base-T with integrated 1:1 transformer (magnetics), 350 µH min. inductance
- 1500 Vac isolation (HiPot)
- Tab Down orientation, through-hole (THT) mounting
- Shielded stainless-steel housing with 6 EMI fingers
- Status LEDs: left green (565 nm), right yellow (585 nm)
- Gold Flash contact plating, phosphor-bronze terminals
- Operating temperature 0 … +70 °C, 750 mating cycles
- Dimensions 15.75 × 21.78 × 13.35 mm (W × L × H)
| Manufacturer / Hersteller | UDE |
|---|---|
| Functions | passive |
| Operating Temperature | 0 °C to +70 °C |
| Durability (cycles) | 750 cycles |
| PoE possible | No |
| Plating | Gold Flash |
| EMI Fingers | 6 |
| Tab | Tab Down |
| Transformer | Yes |
| Center Tab | connected CTs |
| Connector Type | Through Hole |
