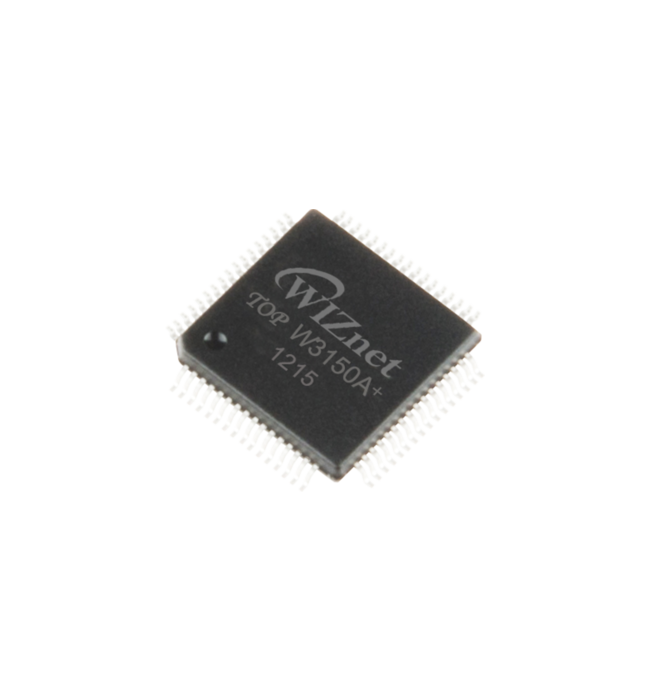

W3150A+

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

W3150A+

Excl. Tax: €3.20 Incl. Tax: €3.81
  • Buy 100 for €2.80 (€3.33 incl. tax) each and save 13%
  • Buy 1000 for €2.50 (€2.98 incl. tax) each and save 22%

Quick Overview

Fully Hardwired TCP/IP – W3150A+ (TCP/IP Core + MAC)

Details

  • Support Hardwired TCP/IP Protocols TCP, UDP, ICMP, IGMP, IPv4, ARP, PPPoE, Ethernet
  • Support ADSL connection (with support PPPoE Protocol with PAP/CHAP Authentication mode)
  • Not support IP Fragmentation
  • Standard MII Interface for Ethernet-PHY chip
  • Supports 10BaseT/100BaseTX
  • Supports full-duplex mode
  • Internal 16Kbytes Memory for Tx/Rx Buffers
  • 0.18 μm CMOS technology
  • 3.3V operation with 5V I/O signal tolerance
  • Small 64 Pin LQFP Package
  • Lead-Free Package
  • Support Serial Peripheral Interface(SPI MODE 0)

Additional Information

Dimension 10 x 10 mm
Ethernet I/F MII
Operating Temperature -40°C to +80°C
Operating Voltage No
Functions No
Network sockets count 4
internal DPRAM buffer memory 16 kB
Package No
pin count No
typ. Power Consumption 24 mA
SPI (max. speed) 15 MHz
MCU I/F No
PHY chip -
pin pitch No
MII Yes
Ethernet Speed No
parallel memory bus No
Manufacturer No

You may also be interested in the following product(s)

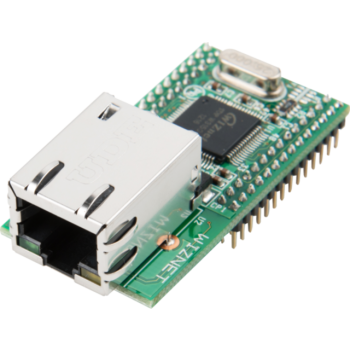

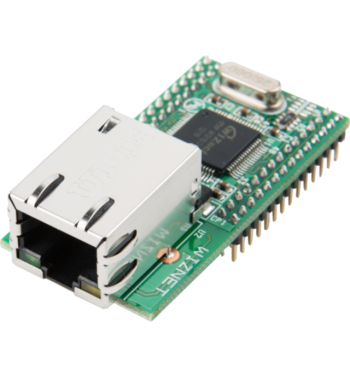

NM7010B+
