WIZnet Ethernet HAT

Product  Description

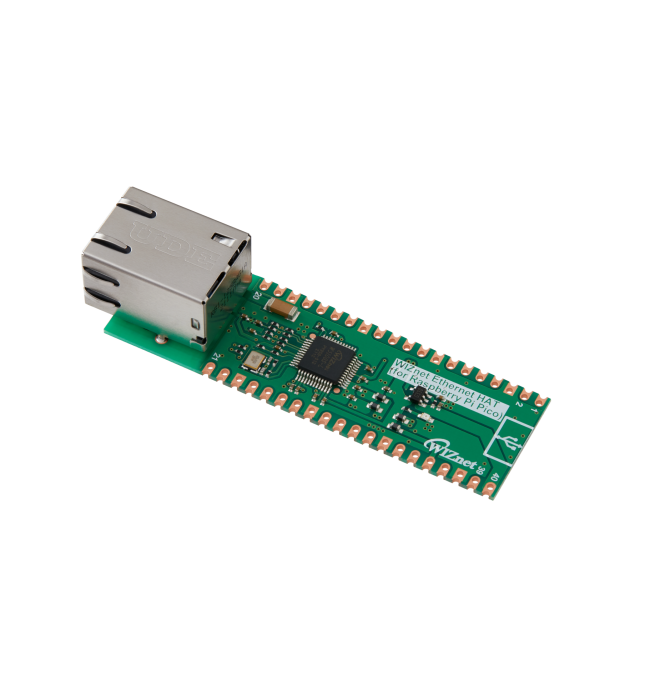

WIZnet Ethernet HAT (Hardware Attached on Top) is a Raspberry Pi Pico pin-compatible board that utilizes W5100S and supports both 3.3V & 5V.

• Raspberry Pi Pico Pin-Compatible
• Ethernet (W5100S Hardwired TCP/IP CHIP)

Features​

• Includes W5100S
  • Supports Hardwired Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
  • Supports 4 Independent Hardware SOCKETs simultaneously
  • Internal 16 Kbytes Memory for TX/ RX Buffers
• Operation Voltage 3.3V / 5V
  • Built-in LDO (LM8805SF5-33V)
• SPI Interface
  • 5V I/O tolerance
• 10 / 100 Ethernet PHY embedded
• Supports Auto Negotiation
  • Full / Half Duplex
  • 10 / 100 Based
• Built-in RJ45 (RB1-125BAG1A)
