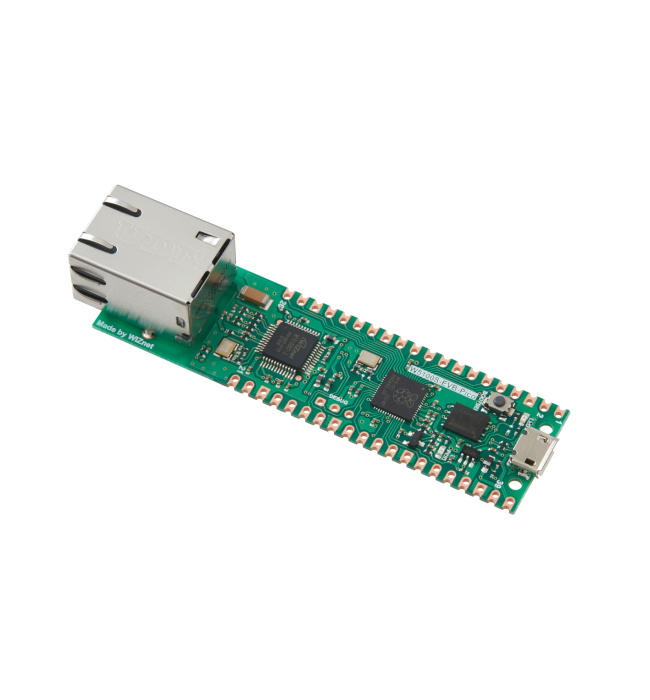

W5100S-EVB-Pico

Excl. Tax: €9.60 Incl. Tax: €11.42

Quick Overview

EVB based on RP2040 and W5100S

Details

Raspberry Pi Pico EVB combined with the W5100S

Product description

The W5100S-EVB-Pico is a microcontroller evaluation board based on the Raspberry Pi RP2040 and fully hardwired TCP/IP controller W5100S - and basically works the same as the Raspberry Pi Pico board but with additional Ethernet via W5100S.

Features

  • RP2040 microcontroller with 2MByte Flash
    • Dual-core cortex M0+ at up to 133MHz
    • 264kByte multi-bank high performance SRAM
    • External Quad-SPI Flash with eXecute In Place (XIP)
    • High performance full-crossbar bus fabric
    • 30 multi-function General Purpose IO (4 can be used for ADC)
    • 1.8-3.3V IO Voltage (NOTE. Pico IO voltage is fixed at 3.3V)
    • 12-bit 500ksps Analogue to Digital Converter (ADC)
    • Various digital peripherals: 2 UART, 2 I2C, 2 SPI, 16 PWM channels, 1 Timer with 4 alarms, 1 Real Time Counter
    • 2 Programmable IO (PIO) blocks, 8 state machines total
    • Flexible, user-programmable high-speed IO
    • Can emulate interfaces such as SD Card and VGA
  • Includes W5100S
    • Supports Hardwired Internet Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
    • Supports 4 Independent Hardware SOCKETs simultaneously
    • Internal 16 kBytes Memory for TX/ RX Buffers
    • SPI Interface
  • Micro-USB B port for power and data (and for reprogramming the Flash)
  • 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellations
  • 3-pin ARM Serial Wire Debug (SWD) port
  • 10 / 100 Ethernet PHY embedded
  • Supports Auto Negotiation, Full / Half Duplex, 10 / 100 Based
  • Built-in RJ45 (RB1-125BAG1A)
  • Built-in LDO (LM8805SF5-33V)

Related Links

W5100S-EVB-Pico in WIZnet Docs

Additional Information

Dimension 75 x 21 mm
Memory 16 Mbit Flash
Power Consumption No
Serial Command Type No
Operating Temperature No
Operating Voltage 5 V
Connector No
Functions S2E (Serial-to-Ethernet)
Auto Negotiation Yes
Network sockets count No
internal DPRAM buffer memory No
pin count -
auto MDIX No
Wake on Lan No
Power Down Mode Yes
Core speed No
RAM No
ROM No
I/O ports No
Related Chip/Module W5100S
Connector Type No
Serial I/F No
serial connector count No
MAC address inside No
Ethernet Speed 10/100
UART (max speed) No
Debug I/F No
Manufacturer WIZnet
