WIZwiki-W7500ECO

Product Description

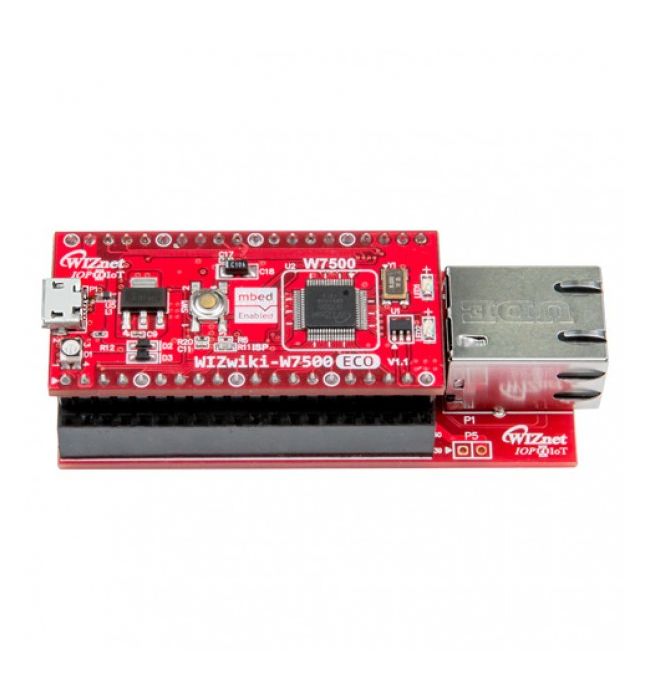

WIZnet WIZwiki-W7500ECO is a WIZwiki platform board based on W7500. The IOP4IoT W7500 chip is the one-chip solution which integrates an ARM Cortex-M0, 128 kB Flash and hardwired TCP/IP core for various embedded application platform especially for Internet of Things. You can develop prototype products more quickly using WIZwiki-W7500ECO, which includes CMSIS-DAP for debugging as well as an external Ethernet PHY from IC+.

Features

W7500

• ARM Cortex-M0 Core (48 MHz, 128 kB Flash, 16 kB RAM)
• 32 kB RAM for TCP/IP - Can be extended to system RAM
• Hardwired TCP/IP Core with MII Interface
• 8 ADC
• 53 GPIO
• SWD (Serial Wire Debug)
• Timer/PWM
• 3 UART
• 2 SPI
• 2 I2C

 External Ethernet PHY

• IC+ IP101GRI
• Single Port 10/100 MII/RMII/TP/Fiber Fast Ethernet Controller
• Auto MDI/MDIX function
• Supports MDC and MDIO to communicate with the MA

CMSIS-DAP

• LPC11U35FHI33/501, ARM Cortex-M0 Core, NXP
• Drag-n-drop programming
• USB serial port
• Easy to use C/C++ SDK


Connector

• micro USB
• slim size RJ45 with transformer
• GPIO header

More features

• power source: micro USB or external 5 V pin
• 1 reset switch
• RGB LED for CMSIS-DAP
• 2 blue LED for user
• 2x 20 pin external connector, pin pitch 2.54 mm
