WIZ752SR-125
€29.63
€24.90
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks

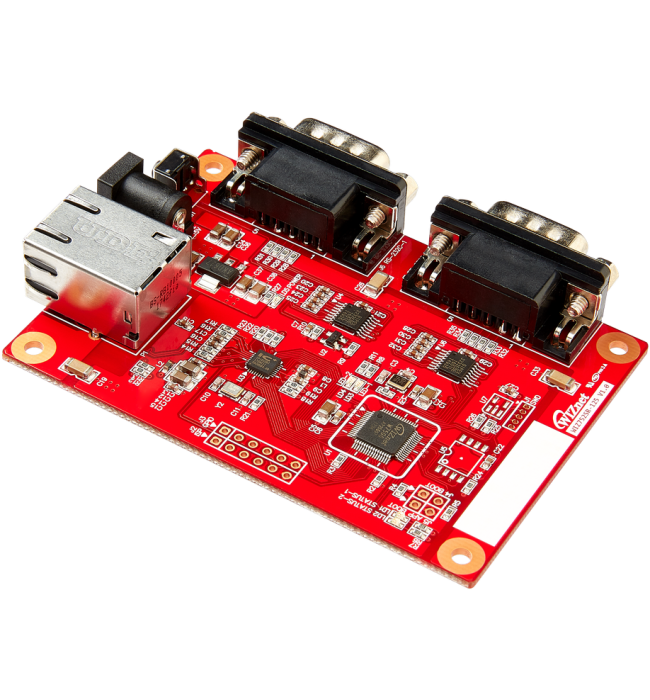

Two port RS232 level Serial-to-Ethernet module with W7500 and DB9 and RJ45 connectors
Product Description
The WIZ752SR-125 is an embedded module based on WIZnet W7500 & IP101GRI. WIZ752SR-125 is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment. It supports two serial ports (RS-232C) so that it can communicate with two serial equipments at the same time.
It is pin-compatible with the WIZ125SR but contains in addition 4 GPIO pins which can be configured by the user as analog input or digital in-/output.
Features
- Serial to Ethernet module based on the WIZnet W7500
- Stand-alone PCB with 2 DB9 and 1 RJ45 connector
- Two serial ports with 3,3 V tolerance (TXD, RXD, RTS, CTS)
- 8 Independent hardware socket
- Internal 32Kbytes memory for TCP/IP packet processing
- 10BaseT / 100Base TX Auto Negotiable Ethernet PHY IP101GRI
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 60 mm x 90 mm x 20 mm |
| Ethernet I/F | RJ45 |
| Operating Temperature | -40 °C to +85 °C |
| Operating Voltage | 5 V |
| Functions | 4-in-1, MCU + TCP/IP + MAC + PHY |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Package | stand alone PCB |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| Core speed | 96 MHz |
| MCU I/F | I2C |
| Related Chip/Module | W7500 |
| voltage regulator (LDO) | Yes |
| Ethernet connector | RJ45 |
| Connector Type | DB9 |
| Ethernet Speed | 10/100 |
| UART (max speed) | 230 k |
