WIZ750SR-105
€23.21
€19.50
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
2mm pin header Ethernet to Serial module with W7500
Product Description

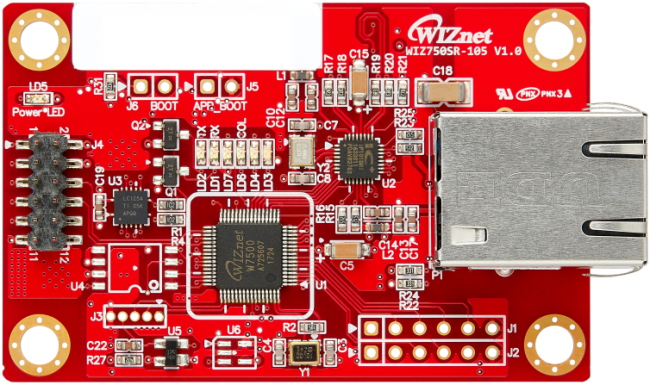

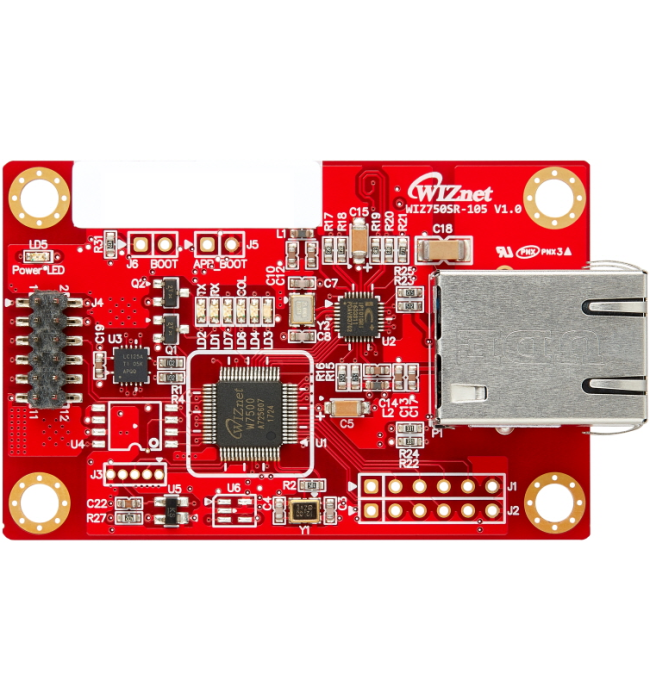

The WIZ750SR-105 is a compact sized serial to Ethernet module using the W7500 Ethernet MCU (SoC based on ARM Cortex-M0 architecture) with an external PHY (IC+). WIZ750SR-105 is a protocol converter that transmits data sent by serial equipment as TCP/IP data and converts the TCP/IP data received through the network back into serial data to the serial equipment. It complies with industrial temperature standard. It is compatible with the WIZ105SR module and, In addition, contains a 4-pin GPIO expansion port that can be controlled freely by the user as analog inputs or digital in/outputs.
The WIZ750SR-105 is compatible with the AT command set from WIZ107SR/WIZ750SR as the firmware and the configuration tool is the same for the board family.
Features
- Hardware compatible with WIZ105SR Module
- Serial to Ethernet Module based on W7500 MCU (TTL level)
- external PHY included
- 10/100Mbps Ethernet & up to 230kbps serial speed (TTL level)
- Status pins: PHY link status / TCP connection status
- Two serial ports (Data UART, Debug UART)
- 2.00mm Pin-header module
- Four user configurable pins
- Built in 10/100Mbps Ethernet ESD Protection IC
- Built in Supervisor IC for improvements of Reset function stability
- Configuration is possible via serial AT commands or via Configuration tool
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 62 mm x 40 mm x 18 mm |
| Ethernet I/F | RJ45 |
| Operating Temperature | -40 °C to +85 °C |
| Operating Voltage | 3.3 V |
| Functions | 4-in-1, MCU + TCP/IP + MAC + PHY |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Package | pin module |
| Pin count module | 2 x 6 |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| Core speed | 96 MHz |
| MCU I/F | I2C |
| Related Chip/Module | W7500 |
| pin pitch | 2.00 mm |
| voltage regulator (LDO) | No |
| Ethernet connector | RJ45 |
| Connector Type | header pins |
| Ethernet Speed | 10/100 |
| UART (max speed) | 230 k |
