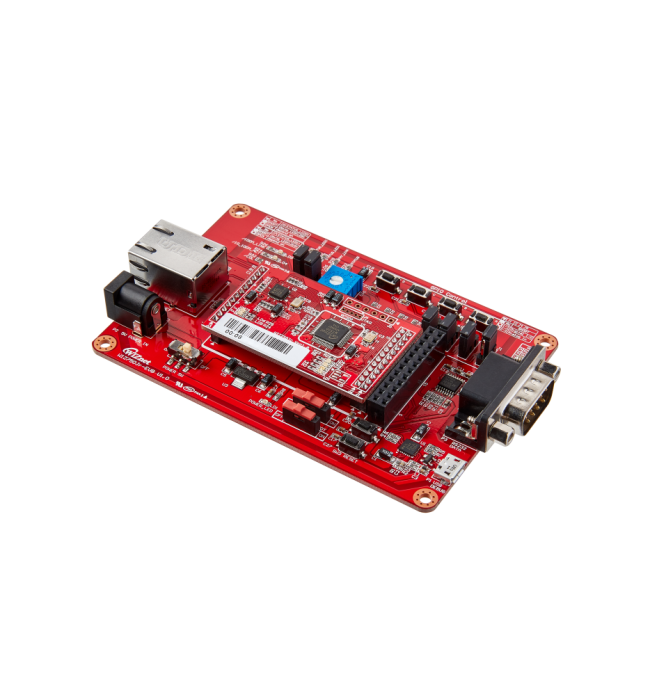

WIZ750SR-100-EVB
€41.65
€35.00
Delivery Time: 5 - 7 d
Evaluation Board for the WIZ750SR-100 Serial-to-Ethernet Module with the W7500 chip.
Product Description
Please note: This module has been released as WIZ750JR-EVB and has been renamed to WIZ750SR-100-EVB in January 2018.
The WIZ750SR-100-EVB is an evaluation board for the WIZ750SR-100 Serial to Ethernet module. It contains the following parts: the WIZ750SR-100 evaluation board equipped with the WIZ750SR-100 module, a Cat 5 Ethernet cable, a RS232 cable and a micro USB type B cable. The WIZ750SR-100 is the serial to Ethernet module using W7500 & IC+PHY Chip.
Features
- Serial to Ethernet Module based on W7500 & PHY chip
- Serial signals : TXD, RXD, RTS, CTS, GND (DTR, DTS optional)
- 10/100Mbps Ethernet & Max.230kbps serial speed
Related Links
WIZnet Documentation
WIZ750SR-100-EVB product page on wiznet.io
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 70 mm x 105 mm |
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| Operating Voltage | 5 V |
| Functions | 4-in-1, MCU + TCP/IP + MAC + PHY |
| Auto Negotiation | Yes |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 32 kB |
| Package | stand alone PCB |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| ROM | 128 kB |
| RAM | 48 kB |
| I/O ports | stand alone PCB |
| Connector Type | DB9 |
| Ethernet connector | RJ45 |
| pin pitch | 2.00 mm |
| voltage regulator (LDO) | Yes |
| Ethernet Speed | 10/100 |
| UART (max speed) | 921 k |
