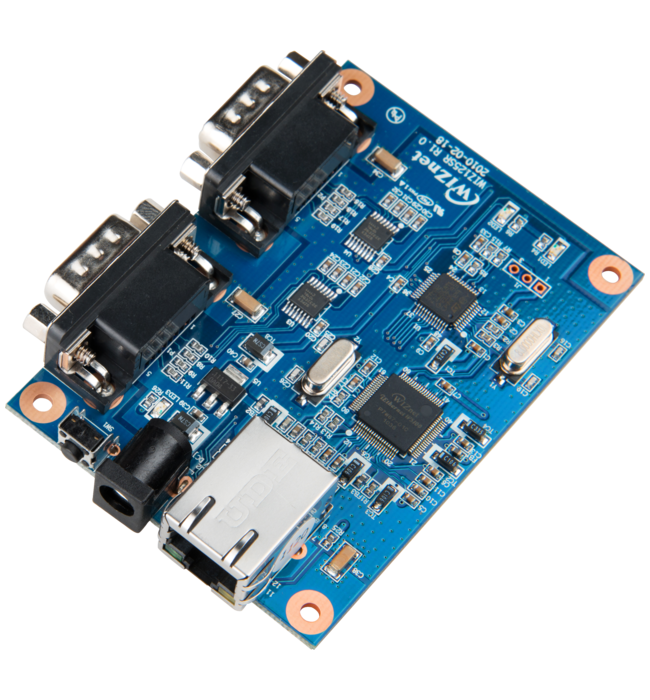

WIZ125SR
€35.22
€29.60
Delivery Time
5 - 7 d
two port RS232 level Serial-to-Ethernet module with W5100 and ARM Cortex M3 MCU
Product Description
WIZ125SR is an embedded module based on WIZnet W5100 & ARM Cortex-M3. WIZ125SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment. It supports two serial ports so that it can communicate with two serial equipments at the same time.
Features
- Serial to Ethernet Module based on W5100 & Cortex-M3
- Serial signals : TXD, RXD, RTS, CTS, GND signals (2 UART/RS-232C)
- 2 DB-9 & RJ-45 mounted
- Support the configuration method of AT command & Configuration tool program
- 10/100Mbps Ethernet & Max.115.2kbps serial speed
- Support WIZ VSP (Virtual Serial Port) program
Related Links
WIZ125SR product page on wiznet.io
| Manufacturer | WIZnet |
|---|---|
| Dimension | 60 mm x 85 mm |
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | ARM Cortex M3 |
| Core speed | 96 MHz |
| voltage regulator (LDO) | Yes |
