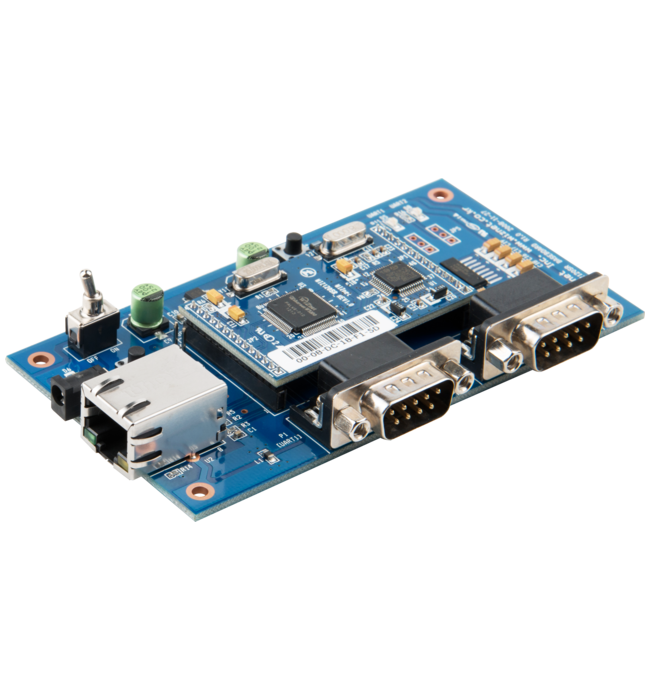

WIZ120SR-EVB
€58.31
€49.00
Delivery Time
5 - 7 d
Evaluation Board for the two port Serial-to-Ethernet module WIZ120SR
Product Description
WIZ120SR-EVB is a evaluation board for WIZ120SR.
WIZ120SR is an embedded module based on WIZnet W5100 & ARM Cortex-M3. WIZ120SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment. WIZ120SR is able to communicate two serial equipments at the same time by supporting 2 serial ports(3.3V LVTTL).
Features
- Module Interface : 1×14 2mm Pin Header (Female)
- Ethernet Interface : RJ-45 (RB1-125BAG1A, Transformer integrated)
- Serial Connector : 2x D-SUB, 9PIN (Right Angle, Male)
- Power : DC Jack mounted (Outer 3.5 Ø, Inner 1.35 Ø)
Related Links
| Manufacturer | WIZnet |
|---|---|
| Dimension | ~ 110 mm x 50 mm |
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| Auto Negotiation | Yes |
| Network sockets count | 4 |
| internal DPRAM buffer memory | 32 kB |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | ARM Cortex M3 |
| ROM | 128 kB |
| RAM | 20 kB |
| voltage regulator (LDO) | Yes |
| Ethernet Speed | 10/100 |
