WIZ100SR

€27.25 €22.90
Delivery Time
5 - 7 d
serial to ethernet plug in 'stamp' module

Product Description

WIZ100SR is the serial to Ethernet module using W5100 & 8051 MCU. WIZ100SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment.

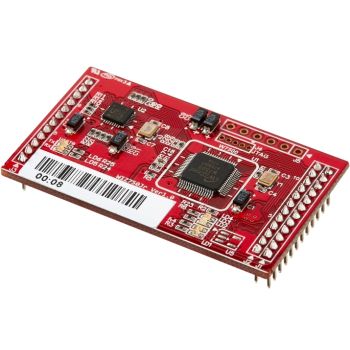

Note: This product is not discontinued, but it is not recommended for new designs. Successor: WIZ750SR-100

Features​

  • Serial to Ethernet Module based on W5100 & 8051
  • Pin-header type module
  • Serial signals : TXD, RXD, RTS, CTS, GND
  • Support the configuration method of AT command & Configuration tool program
  • 10/100Mbps Ethernet & Max.230kbps serial speed
  • Support WIZ VSP (Virtual Serial Port) program

Related Links

WIZ100SR Documentation at docs.wiznet.io

More Information
Manufacturer WIZnet
Dimension 50 mm x 30 mm x 12 mm
Ethernet I/F PHY
Operating Temperature 10 °C to +80 °C
internal DPRAM buffer memory 32 kB
Network sockets count 8
Auto Negotiation Yes
Wake on Lan No
Power Down Mode No
Protocol IPv4
MCU core 8051
Core speed 96 MHz
voltage regulator (LDO) No
Ethernet Speed 10/100
