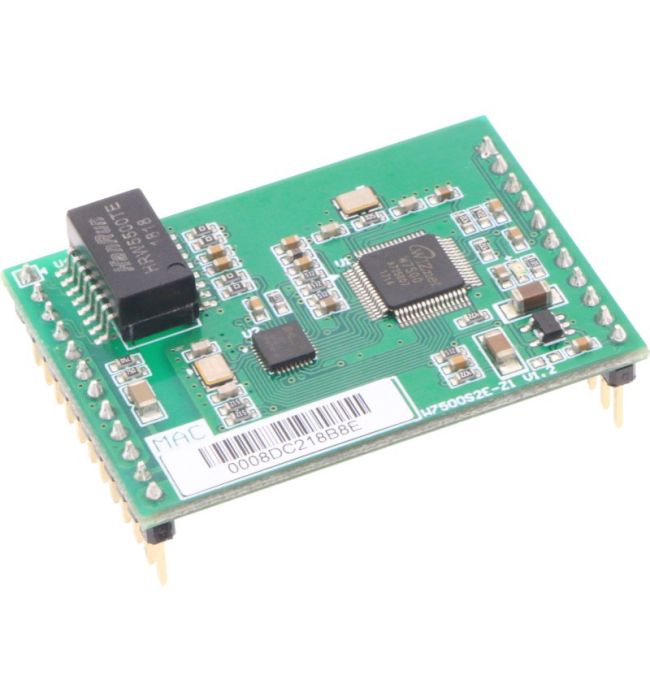

W7500S2E-Z1
€16.07
€13.50
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
W7500S2E is a series of industrial grade serial to Ethernet module. It supports TCP server, TCP client and UDP modes. The maximum baud rate of the serial port is 460,800bps. W7500S2E supports WIZS2E ConfigTool (Configuration Tool for Windows®), web page and AT command for configuring.
Product Description
Module is based on iMCU W7500 which integrates CortexM0 with full hardware TCP/IP protocol stack Ethernet engine, and network communication is fast, stable and robust. The user just needs to refer to the reference schematics and the user manual, can complete the hardware circuit design quickly, reduces the development difficulty and saves the development time.
Features
- Support dual mode: “Data pass-through” and “AT data transfer”
- Support TCP server, TCP client and UDP operating modes
- Support RS-485 enable pin of an external RS-485 transceiver
- Flexible data packet condition for the serial interface
- Support DHCP to configure IP address and other network configuration parameters
- Support DNS for remote server domain name lookup
- Support NetBIOS for easy access of web configuration page
- Support three configuration method: serial AT command, PC software and web page
- Support local firmware upgrades by PC software
- Support “Keep-Alive” to guarantee TCP connection
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Ethernet I/F | RJ45 |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| Core speed | 96 MHz |
| voltage regulator (LDO) | No |
| Ethernet Speed | 10/100 |
