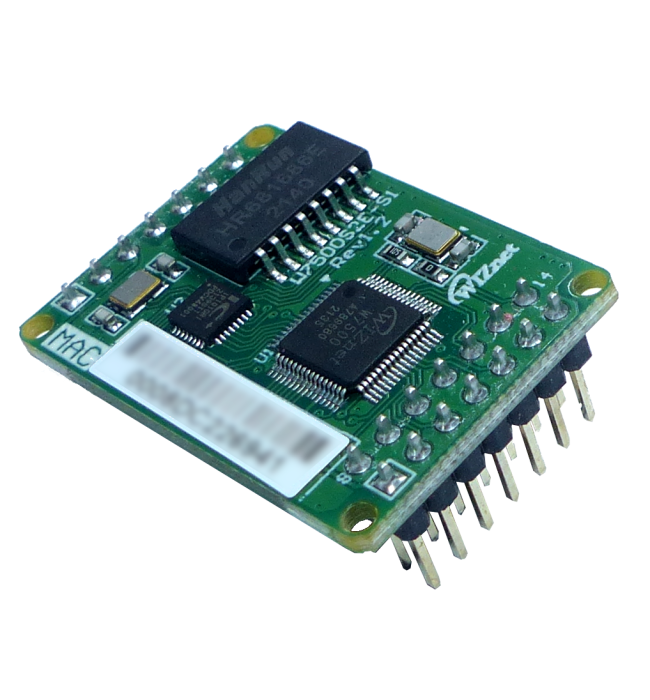

W7500S2E is a series of industrial grade serial to Ethernet module. It supports TCP server, TCP client and UDP modes. The maximum baud rate of the serial port is 460,800bps. W7500S2E supports WIZS2E ConfigTool (Configuration Tool for Windows®), web page and AT command for configuring.

Product Description

W7500S2E integrated with the hardwired TCP/IP protocol MCU W7500/W7500P. This enables faster, stable and secure Ethernet connectivity. With reference schematic(s) and guideline(s) in this user manual, user can simplify the design and reduce development time.


  • Support dual mode: “Data pass-through” and “AT data transfer”
  • Support TCP server, TCP client and UDP operating modes
  • Support RS-485 enable pin of an external RS-485 transceiver
  • Flexible data packet condition for the serial interface
  • Support DHCP to configure IP address and other network configuration parameters
  • Support DNS for remote server domain name lookup
  • Support NetBIOS for easy access of web configuration page
  • Support three configuration method: serial AT command, PC software and web page
  • Support local firmware upgrade by PC software
  • Support “Keep-Alive” to guarantee TCP connection

Related Links

W7500S2E-S1 product page

More Information
Manufacturer WIZnet
Ethernet I/F RJ45
internal DPRAM buffer memory 32 kB
Network sockets count 8
Auto Negotiation No
Wake on Lan No
Power Down Mode No
Protocol IPv4
MCU core ARM Cortex M0
Core speed 96 MHz
voltage regulator (LDO) No
