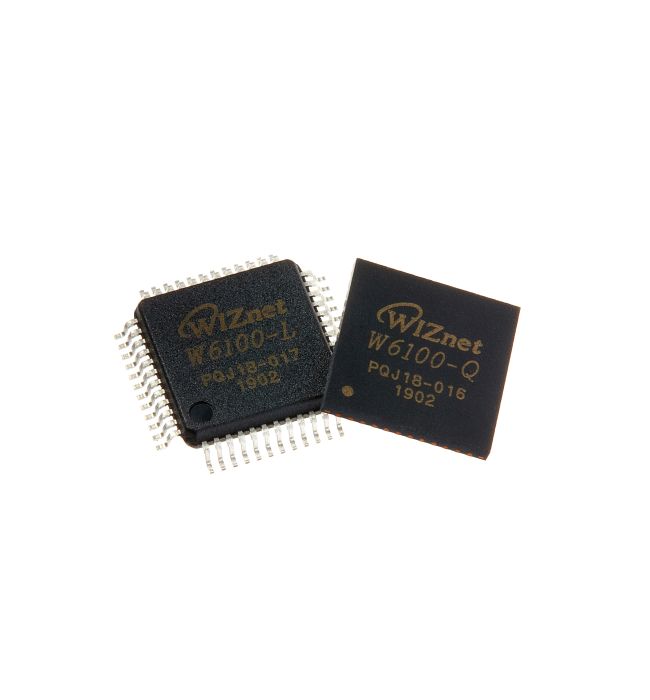

W6100-L
€2.86
€2.40
Delivery Time
5 - 7 d
3 in 1 chip for the Internet connectivity
Hardwired TCP/IP + MAC + PHY
Both SPI and parallel bus Interface 48QFN
Product Description
The W6100 is a Hardwired TCP/IP embedded Ethernet Controller that enables easier Internet Connection for embedded Systems using SPI (Serial Peripheral Interface) and Parallel Bus that incorporates IPv6 and is pin-compatible to W5100S
W6100 suits users in need of stable Internet Connectivity Best, using a single chip to implement TCP/IP Stack, 10/100 Ethernet MAC, and PHY. The implemented Hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE which has been proven through various Applications over many years. W6100 uses a 16 Kbytes Internal Buffer as its Data Communication Memory.
By using W6100, users can implement the Ethernet Application they need by using a simple socket Program instead of handling a complex Ethernet Controller. It is possible to use 8 independent hardware sockets simultaneously.
W6100 users can implement High-Speed Network Communication. In order to reduce the power consumption of the system, W6100 provides a Power Down mode and can be enabled by Wake On Lan.
Information for users of the W6100: The new W6100 and W5100S is not fully pin-to-pin compatible with the W5100, but the software compatibility is kept, hence the software for the W5100 can be used with the W6100/W5100S without any modification.
Features
- Supports hardwired TCP/IP protocols: TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE
- Supports IPv4/IPv6 dual stack
- Supports 8 independent SOCKETs simultaneously with 32KB memory
- Supports SOCKET-less commands: ARP, ICMPv6 (ARP, DAD, NA, RS) command for IPv6 auto-configuration & network monitoring (PING, PING6)
- Supports Ethernet PHY power down mode & system clock switching for power save
- Supports wake on LAN over UDP
- Supports serial & parallel HOST interface: High speed SPI (MODE 0/3), system BUS with 2 address signal & 8bit data
- Internal 32Kbytes memory for TX/ RX Buffers
- 10BaseT/ 10BaseTe / 100BaseTX Ethernet PHY integrated
- Supports auto negotiation (full/half duplex, 10 and 100-based)
- Supports auto-MDIX only on auto-negotiation mode
- Does not support IP fragmentation & jumbo packet
- 3V operation with 5V I/O signal tolerance
- Network indicator LEDs (full/half duplex, link, 10/100 speed, active)
- 48 Pin LQFP & QFN lead-free package (7x7mm, 0.5mm pitch)
Related Links
| Manufacturer | WIZnet |
|---|---|
| Dimension | 7 mm x 7 mm, 0.5 mm pitch |
| Ethernet I/F | PHY |
| Operating Temperature | -40 °C to +85 °C |
| Operating Voltage | 3.3 V |
| Functions | 3-in-1, TCP/IP + MAC + PHY |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 32 kB |
| Package | LQFP |
| pin count chip | 48 |
| MCU I/F | 8 bit (indirect) |
| pin pitch | 0.50 mm |
| Ethernet Speed | 10/100 |
| Protocol | IPv4, IPv6 |
| Auto Negotiation | Yes |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| MCU core | ARM Cortex M0 |
| Core speed | 96 MHz |
