W6100-EVB-Pico2

Product Description

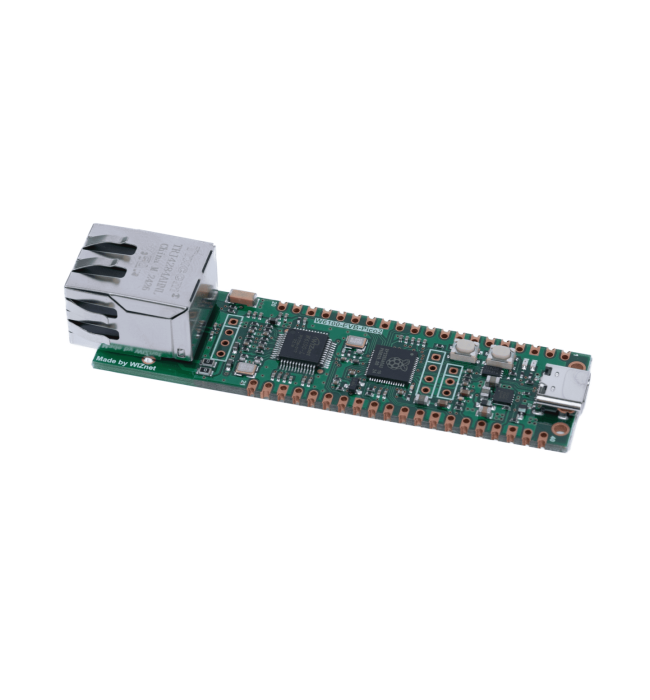

The W6100-EVB-Pico2 is a microcontroller evaluation board based on the Raspberry Pi RP2350 and fully hardwired TCP/IP controller W6100 – and basically works the same as the Raspberry Pi Pico board but with additional Ethernet via W6100.

Features

• RP2350 Microcontroller with Integrated 16Mbit Flash
  • Symmetric dual Arm Cortex-M33 cores at up to 150MHz
  • 520kByte multi-bank high performance SRAM
  • External Quad-SPI Flash with eXecute In Place (XIP)
  • Enhanced performance full-crossbar bus fabric
  • 48 multi-function General Purpose I/O
  • 1.8 - 5 I/O Voltage
• Security Features
  • One Time Programmable (OTP) Memory: Used for boot configuration and secure key storage.
  • Secure Boot: Ensures that only authenticated software can run on the device, utilizing OTP for key verification.
  • Arm TrustZone Technology: Provides hardware isolation between secure and non-secure software, enhancing security for critical applications.
• Analog and Digital Peripherals
  • 12-bit 500ksps Analogue to Digital Converter (ADC)
  • 2x UART, 2x I2C, 2x SPI, 16x PWM channels, 1x Timer with 4 alarms, 1x Real Time Counter
  • 3x Programmable IO (PIO) blocks, 12 state machines total
  • Flexible, user-programmable high-speed IO
  • Can emulate interfaces such as SD Card and VGA
• W6100 Ethernet Controller

  • Supports Hardwired Internet Protocols: TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE
  • Supports 8 Independent Hardware SOCKETs simultaneously
  • Internal 32 Kbytes Memory for TX/RX Buffers
  • SPI Interface
• Connectivity
  • C-Type USB port for power and data (and for reprogramming the Flash)
  • 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellations
  • 3-pin ARM Serial Wire Debug (SWD) port
• Networking
  • 10 / 100 Ethernet PHY embedded
  • Supports Auto Negotiation, Full / Half Duplex, 10 / 100 Based
  • Built-in RJ45
• Power Supply
  • Built-in Switch-mode DC-DC converter (replacing LDO for enhanced power efficiency)
