Product Description

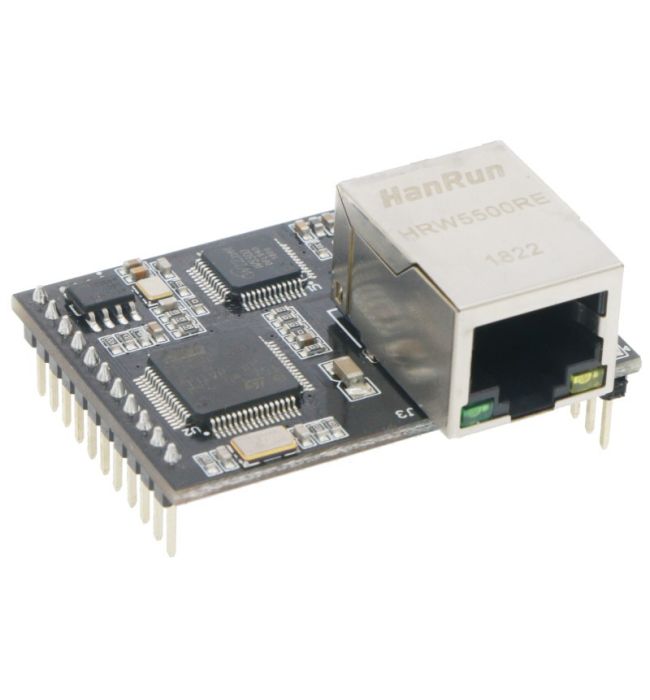

W5500S2E integrated with the hardwired TCP/IP protocol Ethernet chip W5500. This enables a faster, stable and secure Ethernet connectivity. With reference schematic(s) and guideline(s) in this user manual, user can simplify the design and reduce development time.
Features
- Support dual mode: “Data pass-through” and “AT data transfer”
- Support TCP server, TCP client and UDP operating modes
- Support RS-485 enable pin of an external RS-485 transceiver
- Flexible data packet condition for the serial interface
- As DHCP client to automatically acquire IP address
- As DNS client to lookup domain name
- Support Modbus RTU/ASCII to Modbus TCP/UDP
- Support Modbus over TCP/UDP
- Support NetBIOS for easy access of web configuration page
- Support three configuration method: serial AT command, PC software and web page
- Support local and remote firmware upgrade
- Support “Keep-Alive” to guarantee TCP connection
Related Links
| Manufacturer | WIZnet |
|---|---|
| Dimension | 45 x 21 x 23 mm |
| Ethernet I/F | RJ45 |
| Operating Temperature | -40 °C to +85 °C |
| Operating Voltage | 3.3 V |
| Functions | 4-in-1, MCU + TCP/IP + MAC + PHY |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Package | stand alone PCB |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| Core speed | 96 MHz |
| MCU I/F | I2C, SPI, UART, USB |
| Related Chip/Module | W5500 |
| pin pitch | 2.54 mm |
| voltage regulator (LDO) | Yes |
| Ethernet connector | header pins |
| Connector Type | header pins |
| Ethernet Speed | 10/100 |
