W5500-EVB
€45.22
€38.00
Delivery Time
5 - 7 d
- W5500 chip development platform for net enabled microcontroller applications
- Ethernet (W5500 Hardwired TCP/IP chip) and 32-bit ARM® Cortex™-M0 based designs
- Arduino Pin-compatible platform hardware
Product Description

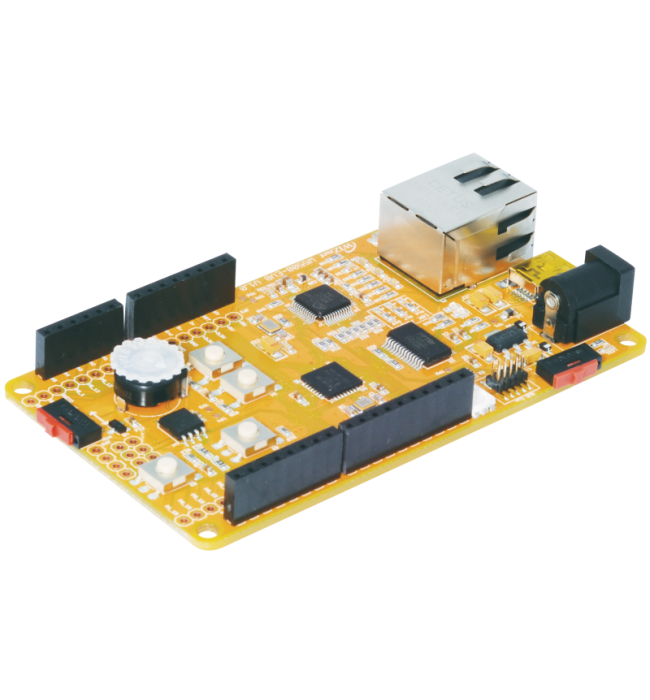

- 32bit ARM Cortex-M0 based evaluation board for W5500 chip
- Hardware pin-compatible with Arduino Uno Rev.3 shield
- On-board temperature sensor / potentiometer (provide reference code)
- 2 Push button switch (SW), 1 x RGB LED, 4-Mbit external data flash memory
- Ethernet / USB-mini B connector and 10-pin Cortex debug connector for SWD (Serial Wire Debug)
- Provides various application code – Loopback, DHCP, DNS, Controlling on-board sensor & potentiometer
Hardware Specification
- MCU : NXP Cortex-M0 (Running at up to 50MHz, 96KB Flash, 2KB SRAM, 4KB EEPROM)
- Ethernet : W5500(WIZnet Hardwired TCP/IP)
- IO : 16 GPIOs, 6 Pins Analog Peripheral using 10bit ADC
- RJ-45 : 10/100 Base-TX RJ-45 with Transformer (J1B1211CCD / CETUS)
- USB : USB Mini-B (On-board USB-to-UART IC, USB BUS Power / FT232RL)
- Power : 5V DC Power
- On-board User I/F : 2xPush button switch, 1xRGB LED, Temperature Sensor, Potentiometer
- External Memory : 4-Mbit Serial Data Flash Memory (AT45DB041D-SU)
- Dimension (mm) : 93 (L) x 53 (W) x 17.3(H)
Related Links
WIZnet Documentation
W5500-EVB product page on wiznet.io
| Manufacturer | WIZnet |
|---|---|
| Dimension | 93 mm x 53 mm x 17.3 mm |
| Ethernet I/F | RJ45 |
| Operating Temperature | -40 °C to +85 °C |
| Auto Negotiation | Yes |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 32 kB |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| ROM | 4 kB |
| RAM | 12 kB |
| voltage regulator (LDO) | Yes |
