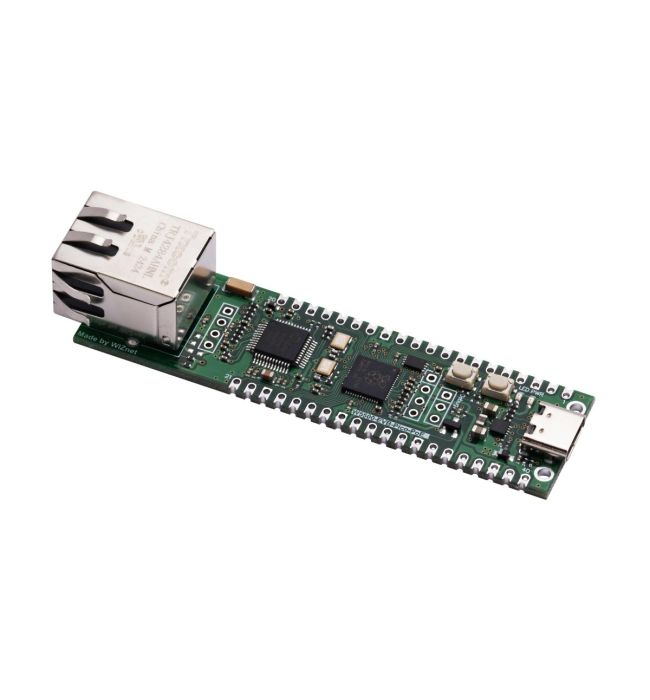

W5500-EVB-Pico-PoE

Product Description

The W5500-EVB-Pico is a microcontroller evaluation board based on the Raspberry Pi RP2040 and fully hardwired TCP/IP controller W5500 – and basically works the same as the Raspberry Pi Pico board but with additional Ethernet via W5500 and supports PoE through a plug-in module.

The PoE module is not included. We recommend the WIZPoE-P1.

Features

• RP2040 microcontroller with 2MByte Flash
  • Dual-core cortex M0+ at up to 133MHz
  • 264kByte multi-bank high performance SRAM
  • External Quad-SPI Flash with eXecute In Place (XIP)
  • High performance full-crossbar bus fabric
  • 30 multi-function General Purpose IO (4 can be used for ADC)
  • 1.8-3.3V I/O Voltage (note: Pico I/O voltage is fixed at 3.3V)
  • 12-bit 500ksps Analogue to Digital Converter (ADC)
  • Various digital peripherals: 2x UART, 2x I2C, 2x SPI, 16x PWM channels, 1x Timer with 4 alarms, 1x Real Time Counter
  • 2x Programmable I/O (PIO) blocks, 8x state machines total
  • Flexible, user-programmable high-speed IO
  • Can emulate interfaces such as SD Card and VGA
• Includes W5500
  • Supports Hardwired Internet Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • Supports 8 Independent Hardware SOCKETs simultaneously
  • Internal 32 Kbytes Memory for TX/ RX Buffers
  • Supports High Speed Serial Peripheral Interface (SPI MODE 0, 3)
• USB TYPE C port for power and data (and for reprogramming the Flash)
• 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellations
• 3-pin ARM Serial Wire Debug (SWD) port
• 10 / 100 Ethernet PHY embedded
• Supports Auto Negotiation, Full / Half Duplex, 10 / 100 Based
• Built-in RJ45 with PoE support
• Built-in LDO
