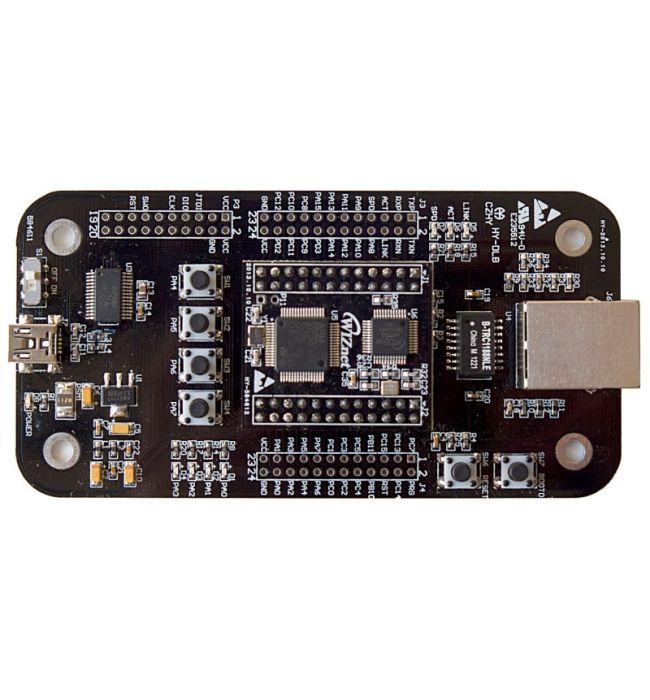

W5500-EVB-M3
€43.79
€36.80
Delivery Time: 7 days for quantities in stock. Other quantities on request.
obsolete: W5500-EVB-M3, W5500 Evaluation Board with STM32F103RCT6 + W5500 design, based on the ARM Cortex-M3 platform.
This product has reached its end of life - parts available until stock is depleted. Please contact us for further details.
Features
- Support for hardware TCP/IP protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Supports eight independent ports (Socket) while communication
- Support power-down mode
- Wake on LAN
- Support for high-speed serial peripheral interface (SPI Mode 0,3)
- Internal 32K byte receive buffer
- Built-in 10BaseT / 100BaseTX Ethernet physical layer (PHY)
- Supports auto-negotiation (10/100-Based full / half duplex)
- Does not support IP fragmentation
- 3.3V operating voltage, I / O port 5V voltage signal;
- LED status display (full / half duplex, network connection, network speed, active)
- 48-pin LQFP lead-free package (7x7mm, 0.5mm pitch)
Related Links
W5500-EVB-M3, W5500 Evaluation Board with STM32F103RCT6 + W5500 design, based on the ARM Cortex-M3 platform.
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Ethernet I/F | PHY |
| Operating Temperature | -40 °C to +85 °C |
| Operating Voltage | 5 V |
| Functions | 3-in-1, TCP/IP + MAC + PHY |
| Auto Negotiation | Yes |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 32 kB |
| Package | stand alone PCB |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M3 |
| ROM | 256 kB |
| RAM | 48 kB |
| I/O ports | stand alone PCB |
| Connector Type | header pins |
| Ethernet connector | RJ45 |
| pin pitch | 2.54 mm |
| voltage regulator (LDO) | No |
| Ethernet Speed | 10/100 |
