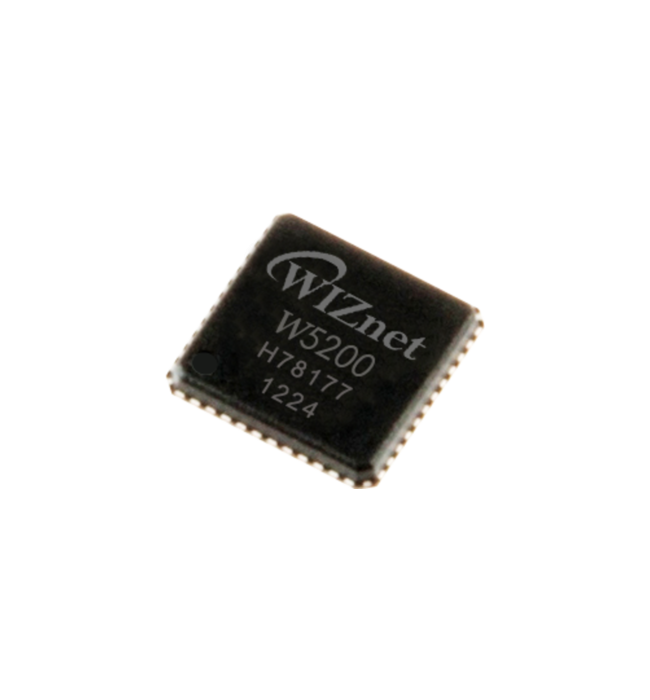

iEthernet W5200 - Fast SPI Ethernet Controller

Product Description

The W5200 chip is a Hardwired TCP/IP embedded Ethernet controller that enables easier Internet connection for embedded systems.

W5200 suits users in need of stable Internet connectivity best, using a single chip to implement TCP/IP Stack, 10/100 Ethernet MAC and PHY. Hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, …, which has been proven through various applications over many years. W5200 uses a 32Kbytes internal buffer as its data communication memory.

By using W5200, users can implement the Ethernet application they need by using a simple socket program instead of handling a complex Ethernet Controller.

It is possible to use 8 independent hardware sockets simultaneously. SPI (Serial Peripheral Interface) is provided for easy integration with the external MCU. In order to reduce power consumption of the system, W5200 provides WOL (Wake on LAN) and a power down mode.



  • High Speed Serial Peripheral Interface (SPI MODE 0, 3)
  • Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE, Ethernet
  • 10BaseT/100BaseTX Ethernet MAC/ PHY embedded
  •  Auto Negotiation ( Full and half duplex, 10 and 100-based )
  •  Auto MDI/MDIX (Straight-through or Crossover)
  •  ADSL connection (with support PPPoE Protocol & PAP/CHAP Authentication mode)
  •  8 independent sockets simultaneously
  •  Internal 32Kbytes Memory for Tx/Rx Buffers
  •  Multi-function LED outputs (Full/Half duplex, Link, Speed)
  •  Power down mode
  •  Wake on LAN
  •  0.18 μm CMOS technology
  •  3.3V operation with 5V I/O signal tolerance
  •  Lead-Free Package
  •  Small & Compace 48 Pin QFN Package

Related Links

WIZnet Documentation

W5200 product page on wiznet.io

More Information
Manufacturer WIZnet
Dimension 7 mm x 7 mm
Ethernet I/F PHY
Operating Temperature -40 °C to +85 °C
Network sockets count 8
internal DPRAM buffer memory 32 kB
Protocol IPv4
Auto Negotiation Yes
Wake on Lan Yes
Power Down Mode Yes
MCU core ARM Cortex M0
Core speed 96 MHz
