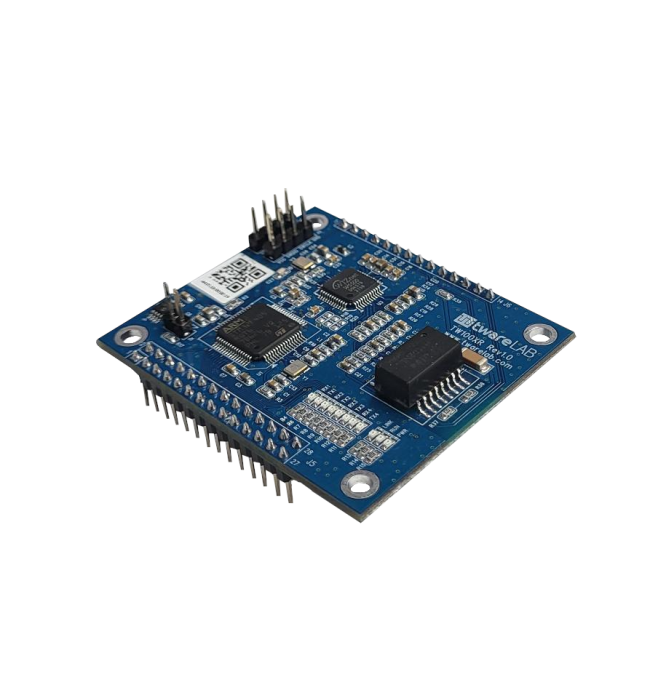

twareLAB TW100XR

€29.75 €25.00
Delivery Time
5 - 7 d

four port TTL level Serial-to-Ethernet module with W5500 and ARM Cortex M4 MCU

Product Description

four-port TTL level Serial-to-Ethernet module with W5500 and ARM Cortex M4 MCU



Features

  • Support 4 serial ports simultaneously
  • Easy to connect to TCP/IP Internet network
  • Add a Internet fucntions into legacy serial device
  • Support firmware customizing
  • High stable and reliability with full hardware Ethernet chipsetEasy config with Configuration Tool Program
  • Supports “Serial Command” set for Serial Configration
  • Supports Static IP, DHCP setting
  • Includes DNS function
More Information
Dimension 48.3 x 35.6 mm
Ethernet I/F RJ45
Operating Temperature 0 °C to +70 °C
Functions 4-in-1, MCU + TCP/IP + MAC + PHY
internal DPRAM buffer memory 32 kB
Network sockets count 8
Auto Negotiation Yes
Protocol IPv4
MCU core ARM Cortex M0
Core speed 96 MHz
voltage regulator (LDO) No
Ethernet connector RJ45
Ethernet Speed 10/100
Debug I/F Yes
