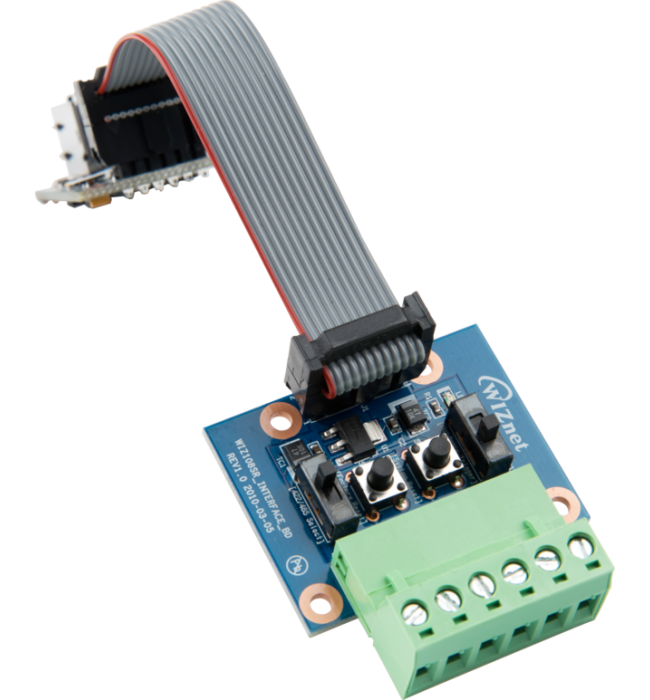

WIZ108SR-EVB

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • WIZ108SR-EVB
  • WIZ108SR-EVB
  • WIZ108SR-EVB
  • WIZ108SR-EVB
  • WIZ108SR-EVB
  • W7100A-S2E chip

WIZ108SR-EVB

Excl. Tax: €46.00 Incl. Tax: €54.74

Quick Overview

Evaluation Board for the Serial-to-Ethernet module WIZ108SR

Details


Evaluation Board for the Serial-to-Ethernet module WIZ108SR incl. one module  WIZ108SR.

Feature
  - Connect with the Serial Device directly
    * Adding Network Function Simply and Quickly
    * Providing Firmware Customization
  - High System Stability and Reliability by using W7100A Hardware Chip
  - Supports Serial Configuration &ndash with Simple and Easy command
  - Supports Password for the Security
  - Easy & Powerful Configuration Tool Program
  - 10/100 Ethernet Interface and max 230Kbps Serial Interface
  - RoHS Compliant


Additional Information

Dimension 35 x 35 mm
Ethernet I/F PHY
Operating Temperature 0°C to +70°C
Operating Voltage No
Functions No
Auto Negotiation Yes
Network sockets count 8
internal DPRAM buffer memory 32 kB
Package No
pin count No
auto MDIX Yes
Wake on Lan No
Power Down Mode No
typ. Power Consumption ~ 250 mA
MCU core 8051
Core speed 8x PLL = 88MHz
RAM 64k
ROM 64k + 255
I/O ports -
SPI (max. speed) -
MCU I/F No
PHY chip internal
Related Chip/Module No
Connector Type No
Serial I/F No
serial connector count No
Ethernet connector No
pin pitch No
voltage regulator (LDO) Yes
MAC address inside Yes
PoE possible No
MII No
Ethernet Speed 10/100
UART (max speed) No
parallel memory bus No
Debug I/F DoCD & compatible debugger
Manufacturer No
